Product Summary
The BAV99 is a high-speed double diode. It consists of two high-speed switching diodes connected in series, fabricated in planar technology, and encapsulated in the small SOT23 plastic SMD package. The BAV99 can be used in high-speed switching in thick and thin-film circuits.
Parametrics
BAV99 absolute maxing ratings: (1)VRRM, repetitive peak reverse voltage: max=85V; (2)VR, continuous reverse voltage: max=75V; (3)On the condition of single diode loaded, IF continuous forward current: max=215mA; on the condition of double diode loaded, IF continuous forward current: max=125mA; (4)IFRM repetitive peak forward current: max=450mA; (5)On the conditions of square wave; Tj=25℃ prior to surge; t=1μs: max=4A; t=1ms: max=1A; t=1s: max=0.5A; (6)On the condition of Tamb=25℃, Ptot total power dissipation: max=250mW; (7)Tstg storage temperature: min=-65℃, max=+150℃; (8)Tj junction temperature: max=150℃.
Features
BAV99 features: (1)Small plastic SMD package; (2)High switching speed: max. 4 ns; (3)Continuous reverse voltage: max. 75 V; (4)Repetitive peak reverse voltage: max. 85 V; (5)Repetitive peak forward current: max. 450 mA.

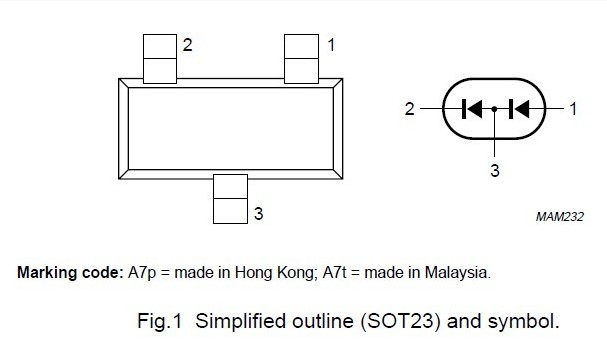

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BAV99W,115 |
NXP Semiconductors |
Diodes (General Purpose, Power, Switching) SW DBL 75V 150MA HS |
Data Sheet |
|
|
|||||||||||||
BAV99-TP |
Micro Commercial Components (MCC) |
Diodes (General Purpose, Power, Switching) 75V |
Data Sheet |
|
|
|||||||||||||
BAV99WT-TP |
Micro Commercial Components (MCC) |
Diodes (General Purpose, Power, Switching) 150mA 75V |
Data Sheet |
|
|
|||||||||||||
BAV99WT1 |
ON Semiconductor |
Diodes (General Purpose, Power, Switching) 70V 215mA Dual |
Data Sheet |
Negotiable |
|
|||||||||||||
BAV99W |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
BAV99DWT |
Micro Commercial Components (MCC) |
Diodes (General Purpose, Power, Switching) 75V |
Data Sheet |
Negotiable |
|
|||||||||||||
BAV99T-7 |
Diodes Inc. |
Diodes (General Purpose, Power, Switching) 85V 150mW |
Data Sheet |
Negotiable |
|
|||||||||||||
BAV99BRW-7 |
Diodes Inc. |
Diodes (General Purpose, Power, Switching) 200MW 75V |
Data Sheet |
Negotiable |
|
