Product Summary

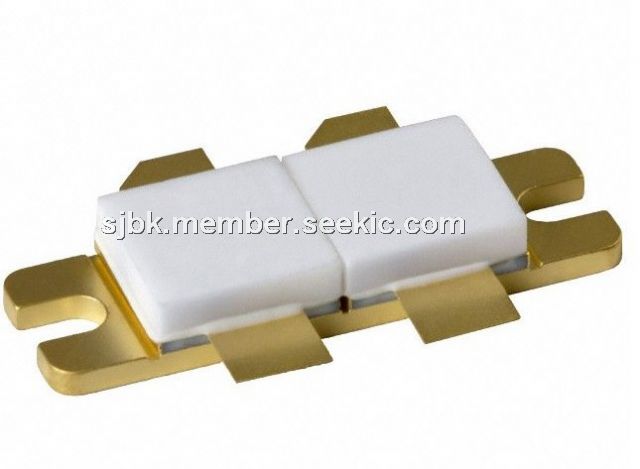

The BLF278 is a dual push-pull silicon N-channel enhancement mode vertical D-MOS transistor, which is encapsulated in a 4-lead, SOT262A1 balanced flange package with two ceramic caps. The mounting flange of the BLF278 provides the common source connection for the transistors. The applications of the include broadcast transmitters in the VHF frequency range.
Parametrics
BLF278 absolute maximum ratings: (1)drain-source voltage: 110 V; (2)gate-source voltage: ±20 V; (3)drain current (DC): 18 A; (4)total power dissipation: 500 W at up to Tmb = 25 ℃ total device; both sections equally loaded; (5)storage temperature: -65 150 ℃; (6)junction temperature: 200 ℃.
Features
BLF278 features: (1)High power gain; (2)Easy power control; (3)Good thermal stability; (4)Gold metallization ensures excellent reliability

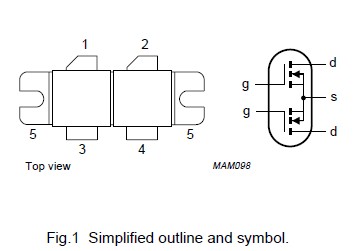

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BLF278 |
Advanced Semiconductor, Inc. |
Transistors RF MOSFET Power RF Transistor |
Data Sheet |
|
|
||||||||||||
 |
BLF278,112 |
NXP Semiconductors |
Transistors RF MOSFET Power RF DMOS 250W VHF |
Data Sheet |
|
|
||||||||||||
|
BLF278/01,112 |
NXP Semiconductors |
Transistors RF MOSFET Power TRANSISTOR VHF PWR LDMOS |
Data Sheet |
|
|
||||||||||||
