Product Summary
The IRLR8726TRPBF is a HEXFET Power MOSFET. The applications of the device include High Frequency Synchronous Buck Converters for Computer Processor Power and High Frequency Isolated DC-DC Converters with Synchronous Rectification for Telecom and Industrial Use.
Parametrics
IRLR8726TRPBF absolute maximum ratings: (1)VDS, Drain-to-Source Voltage: 30 V; (2)VGS, Gate-to-Source Voltage: ±20V; (3)ID @ TC = 25℃, Continuous Drain Current, VGS @ 10V: 86A; (4)ID @ TC = 100℃, Continuous Drain Current, VGS @ 10V: 61A; (5)IDM, Pulsed Drain Current: 340A; (6)PD @TC = 25℃, Maximum Power Dissipation: 75W; (7)PD @TC = 100℃, Maximum Power Dissipation: 38W; (8)Linear Derating Factor: 0.5W/℃; (9)TJ, TSTG,Operating Junction and Storage Temperature Range: -55 to 175℃.
Features
IRLR8726TRPBF features (1)Very Low RDS(on) at 4.5V VGS; (2)Ultra-Low Gate Impedance; (3)Fully Characterized Avalanche Voltage and Current; (4)Lead-Free; (5)RoHS compliant.

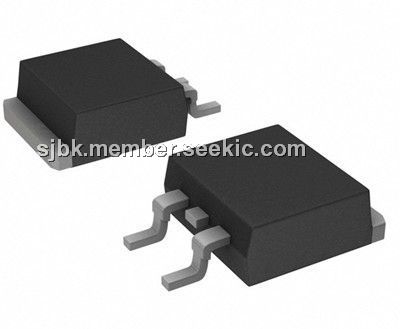

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IRLR8726TRPBF |
International Rectifier |
MOSFET |
Data Sheet |
|
|
|||||||||||||
