Product Summary
The MAX1562HESA+ is a programmable 4A USB current-limited switch with autoreset and fault blanking. The MAX1562HESA+ single current limited switches provide up to 4A to power up to eight USB ports. It operates from a 4V to 5.5V input supply and consume only 40μA of quiescent current when operating and only 3μA in shutdown. The MAX1562HESA+’s autoreset features latches the switch off if the output is shorted, thereby saving system power. When the short is removed, the switch is reactivated. A fault-blanking feature enables the circuit to ignore momentary faults, such as those caused when hot swapping a capacitive load, preventing false alarms to the host system. Fault blanking also prevents fault signals from being issued when the device powers up the load. The applications of the MAX1562HESA+ include notebook computers, desktop computers, USB ports and Hubs, PDAs and palmtop computers, docking stations.
Parametrics
MAX1562HESA+ absolute maximum ratings: (1)IN, ON, ON, ISET, SEL, OUT to GND: -0.3V to +6V; (2)FAULT to GND: -0.3V to (VIN + 0.3V); (3)IN to OUT: -0.3V to +6V; (4)OUT Maximum Continuous Switch Current: 5A; (5)FAULT DC Current:10mA; (6)Continuous Power Dissipation, 8-Pin SO (derate 5.9mW/℃ above +70℃): 471mW; 12-Pin Thin QFN (4mm x 4mm) (derate 16.9mW/℃ above +70℃): 1350mW; (7)Operating Temperature Range: -40℃ to +85℃; (8)Junction Temperature: +150℃; (9)Storage Temperature Range: -65℃ to +150℃; (10)Lead Temperature (soldering, 10s): +300℃.
Features
MAX1562HESA+ features: (1)Programmable Current Limit (1A to 4A) with Resistor; (2)Autoreset Feature Saves System Power; (3)20ms Fault-Blanking Circuitry; (4)Active-High/Low Control Logic; (5)Fault-Indicator Output; (6)Thermal-Overload Protection; (7)Smaller 4mm x 4mm Thin QFN Package; (8)3μA Shutdown Current; (9)UL Certification Pending.

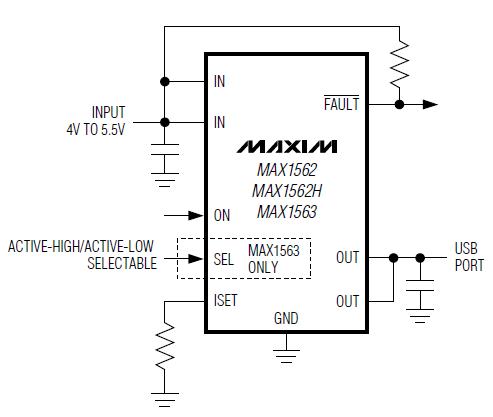

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX1562HESA+ |
Maxim Integrated Products |
Power Switch ICs - USB 4A USB Crnt-Limited w/Autoreset |
Data Sheet |
|
|
||||||||||||
|
MAX1562HESA+T |
Maxim Integrated Products |
Power Switch ICs - USB 4A USB Crnt-Limited w/Autoreset |
Data Sheet |
|
|
||||||||||||
