Product Summary

The MIC29512WT is the 5A fast-response LDO regulator. The high-current, highaccuracy, low-dropout voltage regulators featuring fast transient recovery from input voltage surges and output load current changes. The MIC29512WT is available in the standard three and five pin TO-220 package with an operating junction temperature range of 0 to +125℃.

Parametrics

MIC29512WT absolute maximum ratings: (1)Input Supply Voltage(1): –20V to +20V; (2)Power Dissipation: Internally Limited; (3)Storage Temperature Range: –65℃ to +150℃; (4)Ambient Temperature Range (soldering, 5 sec.): 260℃.

Features

MIC29512WT features: (1)Fast transient response; (2)5A current capability; (3)700mV dropout voltage at full load; (4)Low ground current; (5)Accurate 1% guaranteed tolerance; (6)Zero current shutdown mode (MIC29512); (7)Fixed voltage and adjustable versions.

Diagrams

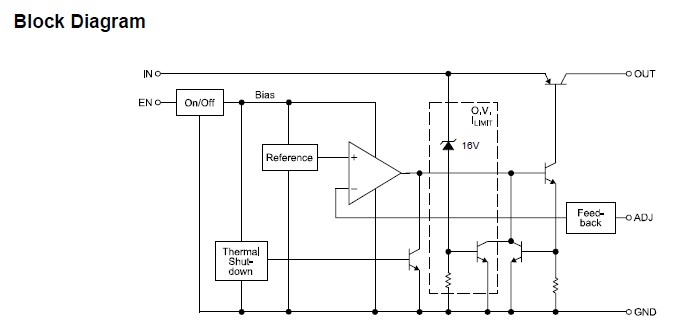

MIC29512WT block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

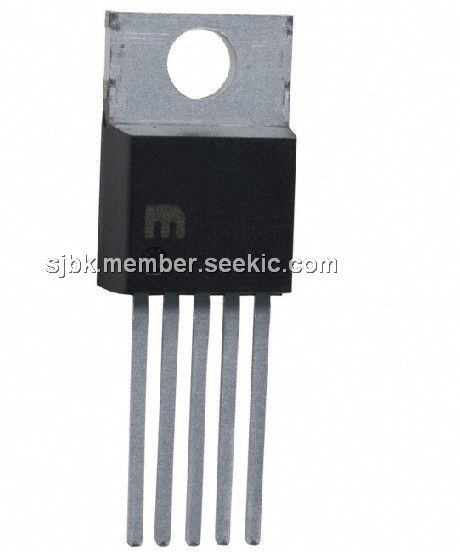

MIC29512WT
MIC29512WT

IC REG LDO USB 5A ADJ TO220-5
Data Sheet
0-1: $2.88
1-25: $2.30
25-100: $1.94
100-250: $1.87
250-500: $1.83
