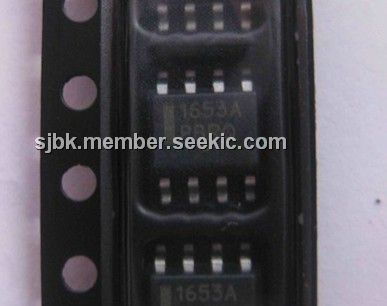

NCP1653ADR2G

NCP1653ADR2G, PFC Controller, SOP8, 18V, 1.5A, ON Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~100.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~100.00

PartNumber:: NCP1653ADR2G

Brand:: ON Semiconductor - ON | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. tiffany's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-09

From Other Seller

Part Number:NCP1653ADR2G
US $0.01 - 100.00
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

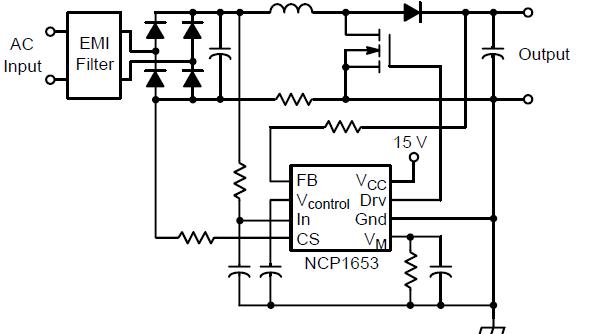

The NCP1653ADR2G is a controller designed for Continuous Conduction Mode (CCM) Power Factor Correction (PFC) boost circuits. It operates in the follower boost or constant output voltage in 67 or 100 kHz fixed switching frequency. Follower boost offers the benefits of reduction of output voltage and hence reduction in the size and cost of the inductor and power switch. Housed in a DIP.8 or SO.8 package, the circuit minimizes the number of external components and drastically simplifies the CCM PFC implementation. It also integrates high safety protection features. The NCP1653ADR2G is a driver for robust and compact PFC stages. The applications of the NCP1653ADR2G include TV & monitors, PC desktop SMPS, AC adapters SMPS, white goods.

Parametrics

NCP1653ADR2G absolute maximum ratings: (1)FB, Vcontrol, In, CS, VM Pins (Pins 1.5), Maximum Voltage Range Vmax: -0.3 to +9V; Maximum Current Imax: 100mA; (2)Drive Output (Pin 7), Maximum Voltage Range Vmax: -0.3 to +18V; Maximum Current Range Imax: 1.5A; (3)Power Supply Voltage (Pin 8) Maximum Voltage Range Vmax: -0.3 to +18V; Maximum Current Imax: 100mA; (4)Operating Junction Temperature Range TJ: -40 to +125℃; (5)Storage Temperature Range Tstg: -65 to +150℃.

Features

NCP1653ADR2G features: (1)IEC1000-3-2 Compliant; (2)Continuous Conduction Mode; (3)Average Current-Mode or Peak Current-Mode Operation; (4)Constant Output Voltage or Follower Boost Operation; (5)Very Few External Components; (6)Fixed Switching Frequency: 67 kHz = NCP1653A; (7)Soft-Start Capability; (8)VCC Undervoltage Lockout with Hysteresis (8.7 / 13.25 V); (9)Overvoltage Protection (107% of Nominal Output Level); (10)Undervoltage Protection or Shutdown (8% of Nominal Output Level); (11)Programmable Overcurrent Protection; (12)Programmable Overpower Limitation; (13)Thermal Shutdown with Hysteresis (120 / 150℃); (14)Pb-Free Packages are Available.
