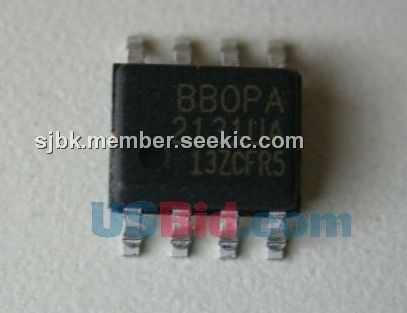

OPA2131UA

OPA2131UA, operational amplifier, SOP-8, 36V, 25mA, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~100.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~100.00

PartNumber:: OPA2131UA

Brand:: Texas Instruments - TI | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. tiffany's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-09

From Other Seller

Part Number:OPA2131UA
US $0.01 - 100.00
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
IRF3205

US $0.80 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The OPA2131UA is a general-purpose FET-input operational amplifier. The OPA2131UA provides high performance at low cost. Single, dual, and quad versions in industry-standard pinouts allow cost-effective design options. The OPA2131UA offers excellent general-purpose performance, including low offset voltage, drift, and good dynamic characteristics. Single, dual, and quad versions are available in DIP and SO packages. Performance grades include commercial and industrial temperature ranges.

Parametrics

OPA2131UA absolute maximum ratings: (1)Supply Voltage, V+ to V–: 36V; (2)Input Voltage: (V–)–0.7V to (V+) + 0.7V; (3)Output Short-Circuit: Continuous; (4)Operating Temperature: -55℃ to +125℃; (5)Storage Temperature: -55℃ to +125℃; (6)Junction Temperature: 150℃; (7)Lead Temperature (soldering, 10s): 300℃.

Features

OPA2131UA features: (1)Fet input: IB = 50pA max; (2)Low offset voltage: 750μV max; (3)Wide supply range: ±4.5V to ±18V; (4)Slew rate: 10V/μs; (5)Wide bandwidth: 4MHz; (6)Excellent capacitive load drive; (7)Single, dual, quad versions.
