Product Summary
The SN74LVC1G04DBV is a single inverter, designed for 1.65-V to 5.5-V VCC operation. The SN74LVC1G04DBV performs the Boolean function Y = A. NanoStar and NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
Parametrics
SN74LVC1G04DBV absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 to 6.5 V; (2)Input voltage range, VI: -0.5 to 6.5 V; (3)Voltage range applied to any output in the high-impedance or power-off state, VO: -0.5 to 6.5 V; (4)Voltage range applied to any output in the high or low state, VO : -0.5 VCC + 0.5 V; (5)Input clamp current, VI < 0, IIK: -50 mA; (6)Output clamp current, VO < 0, IOK: -50 mA; (7)Continuous output current, IO: ±50 mA; (8)Continuous current through VCC or GND: ±100 mA; (9)Package thermal impedance: DBV package 206, θJA: 206℃/W; DCK package 252, θJA: 252℃/W; DRL package 142, θJA: 142℃/W; YEA/YZA package 154, θJA: 154℃/W; YEP/YZP package 132, θJA: 132℃/W; YZV package TBD: θJA: TBD; (10)Storage temperature range, Tstg: -65 to 150℃.
Features
SN74LVC1G04DBV features: (1)Available in the texas instruments NanoStarTM and NanofreeTM packages; (2)Ioff supports Partial-power-down mode operation; (3)Supports 5-V VCC operation; (4)Latch-up performance exceeds 100 mA Per JESD 78, Class II; (5)Inputs accept voltages to 5.5 V; (6)Max tpd of 3.3 ns at 3.3 V; (7)±24-mA output drive at 3.3 V; (8)Low power consumption, 10-μA Max ICC; (9)ESD protection exceeds JESD 22:2000-V human-body model (A114-A); 200-V machine model (A115-A); 1000-V charged-device model (C101).

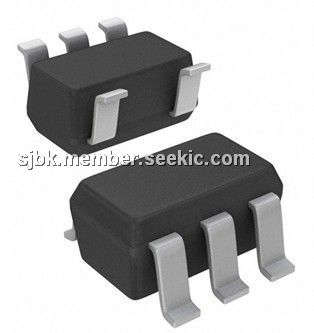

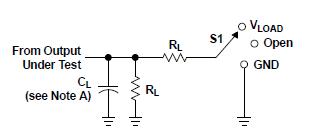

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74LVC1G04DBVR |
Texas Instruments |
Inverters Single |
Data Sheet |
|
|
||||||||||||
|
SN74LVC1G04DBVRE4 |
Texas Instruments |
Inverters Low-Voltage Dual Mltplxr/Demltplxr |
Data Sheet |
|
|
||||||||||||
|
SN74LVC1G04DBVT |
Texas Instruments |
Inverters SINGLE INVERTER |
Data Sheet |
|
|
||||||||||||
|
SN74LVC1G04DBVRG4 |
Texas Instruments |
Inverters Low-Voltage Dual Mltplxr/Demltplxr |
Data Sheet |
|
|
||||||||||||
|
SN74LVC1G04DBVTE4 |
Texas Instruments |
Inverters Low-Voltage Dual Mltplxr/Demltplxr |
Data Sheet |
|
|
||||||||||||
|
SN74LVC1G04DBVTG4 |
Texas Instruments |
Inverters SNGL Inverter |
Data Sheet |
|
|
||||||||||||
