Product Summary

The FQPF8N60C N-Channel enhancement mode power field effect transistor is produced using Fairchild’s proprietary, planar stripe, DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. The FQPF8N60C is well suited for high efficiency switched mode power supplies, active power factor correction, electronic lamp ballasts based on half bridge topology.

Parametrics

FQPF8N60C absolute maximum ratings: (1)Drain-Source Voltage: 600 V; (2)Drain Current: Continuous (TC = 25℃): 7.5 A, Continuous (TC = 100℃): 4.6 A; (3)Drain Current - Pulsed: 30 A; (4)Gate-Source Voltage: ± 30 V; (5)Single Pulsed Avalanche Energy: 230 mJ; (6)Avalanche Current: 7.5 A; (7)Repetitive Avalanche Energy: 14.7 mJ; (8)Peak Diode Recovery dv/dt: 4.5 V/ns; (9)Power Dissipation: (TC = 25℃): 48 W, Derate above 25℃: 0.38 W/℃; (10)Operating and Storage Temperature Range: -55 to +150 ℃; (11)TL; (12)Maximum lead temperature for soldering purposes, 1/8" from case for 5 seconds: 300 ℃.

Features

FQPF8N60C features: (1)7.5A, 600V, RDS(on) = 1.2Ω @VGS = 10 V; (2)Low gate charge ( typical 28 nC); (3)Low Crss ( typical 12 pF); (4)Fast switching; (5)100% avalanche tested; (6)Improved dv/dt capability.

Diagrams

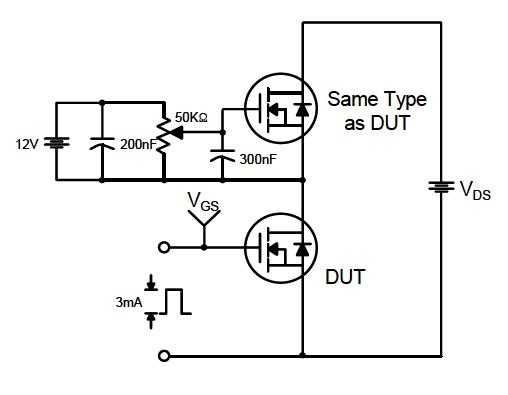

FQPF8N60C Test Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

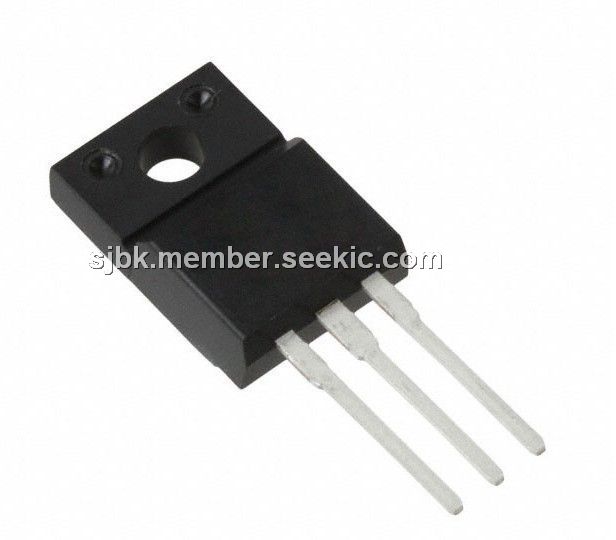

FQPF8N60C
FQPF8N60C

Fairchild Semiconductor

MOSFET 600V N-Ch Q-FET advance C-Series

Data Sheet

0-1: $0.92
1-25: $0.71
25-100: $0.56
100-250: $0.44
