Product Summary

The TC4422CPA is the 9A high-speed MOSFET driver, which is essentially immune to any form of upset except direct overvoltage or over-dissipation- it can not be latched under any conditions within its power and voltage ratings; it can accept, without either damage or logic upset, more than 1A inductive current of either polarity being forced back into their outputs. In addition, all terminals are fully protected against up to 4 kV of electrostatic discharge.

Parametrics

TC4422CPA absolute maximum ratings: (1)Power Dissipation, TA ≤ 70℃: PDIP, 730W; CerDIP, 800mW;; (2)5-Pin TO-220, 1.6W; (3)Power Dissipation, TA ≤ 70℃: 5-Pin TO-220 (With Heat Sink), 1.60W; (4)Derating Factors (To Ambient): PDIP, 8mW/℃; CerDIP, 6.4mW/℃, 5-Pin TO-220, 12mW/℃; (5)Thermal Impedance (To Case): 5-Pin TO-220 RQJ-C 10℃/W; (6)Storage Temperature: – 65 to +150℃; (7)Operating Temperature (Chip): 150℃.

Features

TC4422CPA features: (1)Tough CMOS Construction; (2)High Peak Output Current: 9A; (3)High Continuous Output Current: 2A Max; (4)Fast Rise and Fall Times: 30 nsec with 4,700 pF Load; 180 nsec with 47,000 pF Load; (5)Short Internal Delays: 30nsec Typ; (6)Low Output Impedance: 1.4W Typ.

Diagrams

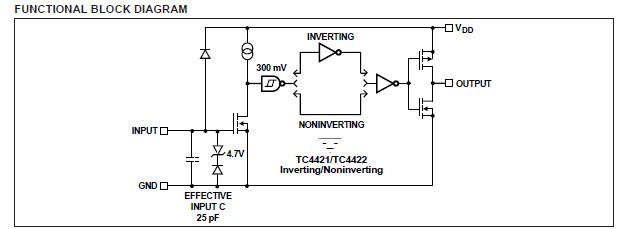

TC4422CPA functional block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

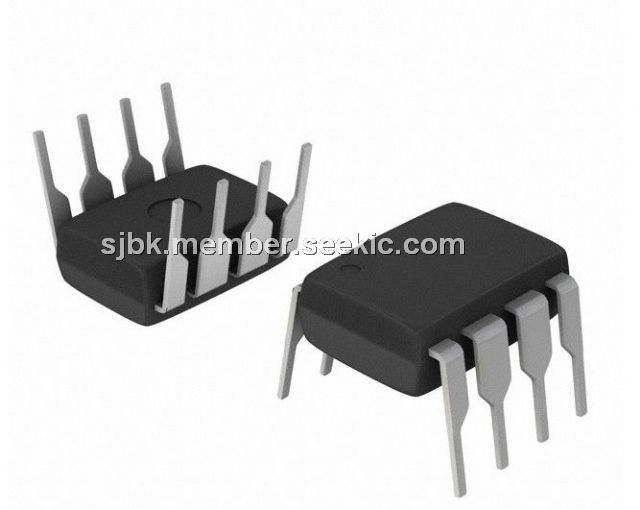

TC4422CPA
TC4422CPA
Microchip Technology
Power Driver ICs 9A Sngl
Data Sheet
0-1: $2.08
1-10: $1.66
10-25: $1.39
25-100: $1.26
