Product Summary

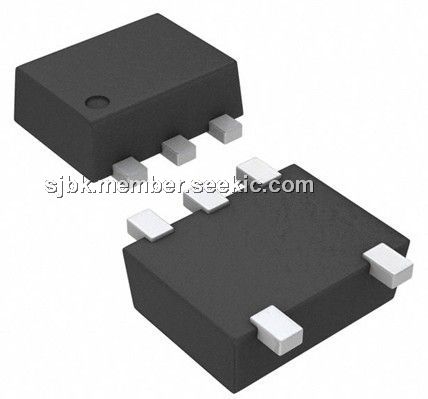

The TPD3E001DRL is a low-capacitance ±15-kV ESD-protection diode array designed to protect sensitive electronics attached to communication lines. Each channel consists of a pair of diodes that steer ESD current pulses to VCC or GND. The TPD3E001DRL protects against ESD pulses up to ±15-kV Human-Body Model (HBM), ±8-kV Contact Discharge, and ±15-kV Air-Gap Discharge, as specified in IEC 61000-4-2. This device has a 1.5-pF capacitance per channel, making it ideal for use in high-speed data IO interfaces. The TPD3E001DRL is a triple-ESD structure designed for USB On-the-Go (OTG) and video applications. The TPD3E001DRL is available in DRL, DRY, and thin QFN packages and is specified for -40℃ to 85℃ operation. The applications of the TPD3E001DRL include USB 2.0, ethernet, firewire, video, cell phones, svga video connections, glucosemeters.
Parametrics
TPD3E001DRLR absolute maximum ratings: (1)VCC: –0.3 to 7 V; (2)VI/O: –0.3 to VCC + 0.3 V; (3)Storage temperature range, Tstg : –65 to 150℃; (4)Junction temperature, TJ: 150℃; (5)Bump temperature (soldering), Infrared (15 s): 220℃; Vapor phase (60 s): 215℃; (6)Lead temperature (soldering, 10 s): 300℃.
Features
TPD3E001DRLR features: (1)ESD Protection Exceeds, ±15-kV Human-Body Model (HBM); ±8-kV IEC 61000-4-2 Contact Discharge; ±15-kV IEC 61000-4-2 Air-Gap Discharge; (2)Low 1.5-pF Input Capacitance; (3)Low 1-nA (Max) Leakage Current; (4)Low 1-nA Supply Current; (5)0.9-V to 5.5-V Supply-Voltage Range; (6)3-Channel Device; (7)Space-Saving DRL, DRY, and QFN Package Options; (8)Alternate 2-, 4-, and 6-Channel Options Available: TPD2E001, TPD4E001, and TPD6E001.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TPD3E001DRLR |
Texas Instruments |
ESD Suppressors Low-Cap 3Ch ESD Protection Array |
Data Sheet |
|
|
||||||||||||
|
TPD3E001DRLRG4 |
Texas Instruments |
ESD Suppressors Low-Cap 3Ch ESD Protection Array |
Data Sheet |
|
|
||||||||||||
