Product Summary

The WP424HDT is a T-1 (3mm) cylindrical LED lamp. The Bright Red source color device is made with Gallium Phosphide Red Light Emitting Diode.

Parametrics

WP424HDT absolute maixmum ratings: (1)Power dissipation: 62.5 mW; (2)DC Forward Current: 25 mA; (3)Peak Forward Current: 130 mA; (4)Reverse Voltage: 5 V; (5)Operating/Storage Temperature: -40℃ To +85℃; (6)Lead Solder Temperature: 260℃ For 3 Seconds; (7)Lead Solder Temperature: 260℃ For 5 Seconds.

Features

WP424HDT features: (1)Cylindrical type,top diffused; (2)Low power consumption; (3)I.C. Compatible; (4)Reliable and rugged; (5)Long life - solid state reliability; (6)Available on tape and reel; (7)RoHS compliant.

Diagrams

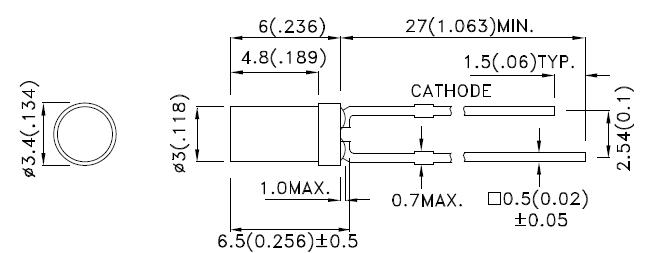

WP424HDT Package Dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
WP424HDT
WP424HDT
Kingbright
Standard LED - Through Hole 3MM FLAT TOP RED
Data Sheet
0-1: $0.07
1-10: $0.05
10-100: $0.05
100-200: $0.04
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
WP424EDT
WP424EDT
Kingbright
Standard LED - Through Hole Orange 625nm Diffused 5mcd
Data Sheet
0-1: $0.07
1-10: $0.06
10-100: $0.05
100-200: $0.04
WP424GDT
WP424GDT
Kingbright
Standard LED - Through Hole 3MM FLAT TOP GRN
Data Sheet
0-1: $0.07
1-10: $0.05
10-100: $0.05
100-200: $0.04
WP424HDT
WP424HDT
Kingbright
Standard LED - Through Hole 3MM FLAT TOP RED
Data Sheet
0-1: $0.07
1-10: $0.05
10-100: $0.05
100-200: $0.04
WP424IDT
WP424IDT
Kingbright
Standard LED - Through Hole 3mm FLAT TOP RED DIF
Data Sheet
0-1: $0.07
1-10: $0.06
10-100: $0.05
100-200: $0.04
WP424NDT
WP424NDT
Kingbright
Standard LED - Through Hole ORANGE LED
Data Sheet
0-1000: $0.05
WP424SRDT
WP424SRDT
Kingbright
Standard LED - Through Hole 3MM FLAT TOP RED
Data Sheet
0-1: $0.08
1-10: $0.06
10-100: $0.05
100-200: $0.05
