Product Summary

The 101-TS3724T1600-EV is a touch retractable switch.

Parametrics

101-TS3724T1600-EV absolute maximum ratings: (1)Current Rating (Max ): 50mA; (2)Voltage Rating DC: 12V.

Features

101-TS3724T1600-EV features: (1)Electrical: 50,000 cycles for 160gf; (2)Rating: 50mA/12VDC; (3)Contact Resistance: 100m?max.; (4)Insulation Resistance: 100MΩmin., at 500VDC; (5)Dielectric Strength: 250 VAC / 1 minute.

Diagrams

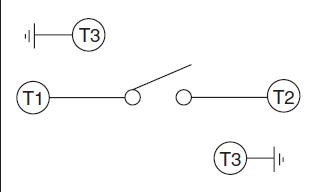

101-TS3724T1600-EV circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
101-TS3724T1600-EV
101-TS3724T1600-EV
Mountain Switch
Tactile & Jog Switches 3.5x6mm 160gf BROWN
Data Sheet
0-1: $0.45
1-50: $0.36
50-100: $0.29
100-500: $0.24
