2N7000

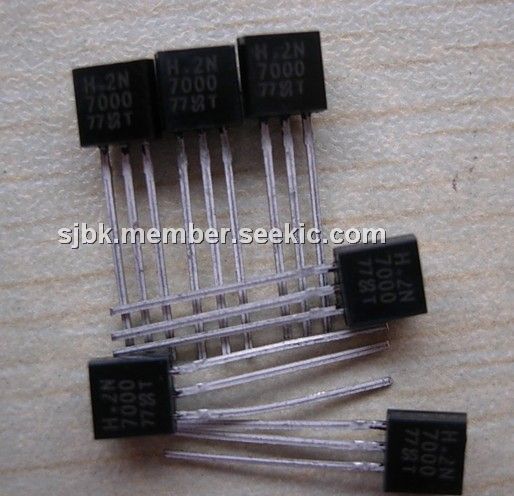

2N7000, Small Signal MOSFET, 200 mA, 60V, TO-92, ON Semiconductor

Rated 5 Rating 5 | reviews | Write a review
