Product Summary

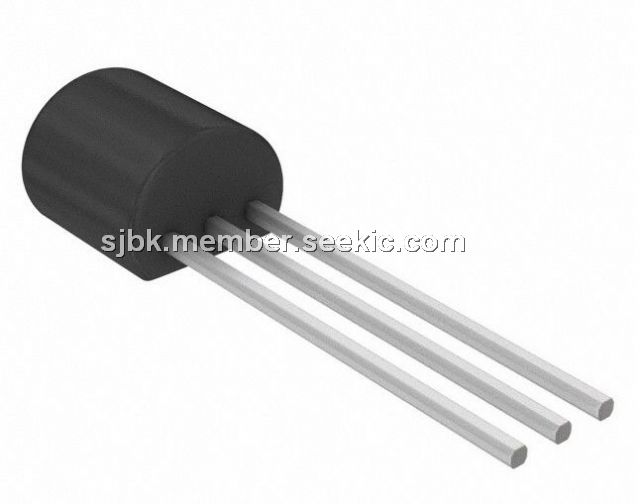

The 2n5458 is a low level audio amplifier and switching transistor, and can be used for analog switching applications. Sourced from Process 55.
Parametrics
2n5458 absolute maximum ratings: (1)VDG, Drain-Gate Voltage: 25 V; (2)VGS, Gate-Source Voltage: - 25 V; (3)IGF, Forward Gate Current: 10 mA; (4)TJ, Tstg, Operating and Storage Junction Temperature Range: -55 to +150℃.
Features
2n5458 features: (1)PD Total Device Dissipation: 625mW; 5.0mW/℃ when Derate above 25℃; (2)RθJC, Thermal Resistance, Junction to Case: 83.3℃/W; (3)RθJA, Thermal Resistance, Junction to Ambient: 200℃/W.

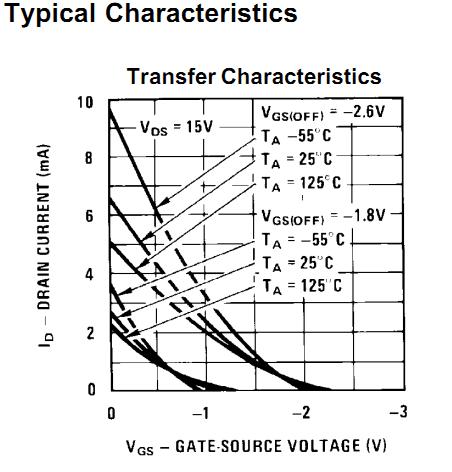

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 2N5458_D26Z |
Fairchild Semiconductor |
JFET N-Channel Transistor General Purpose |
Data Sheet |
Negotiable |
|
||||||||||
|
2N5458_D27Z |
Fairchild Semiconductor |
JFET N-Channel Transistor General Purpose |
Data Sheet |
Negotiable |
|
||||||||||
|
2N5458_Q |
Fairchild Semiconductor |
JFET N-Channel Transistor General Purpose |
Data Sheet |
Negotiable |
|
||||||||||
 |
2N5458G |
ON Semiconductor |
JFET 25V 10mA |
Data Sheet |
Negotiable |
|
||||||||||
 |
2N5458 |
Central Semiconductor |
JFET N-Ch/AMP |
Data Sheet |
|
|
||||||||||
