Product Summary

The AK4388ET is a 192kHz, 24-Bit, 2ch ΔΣ DAC. The AK4388ET offers the perfect mix for cost and performance based audio systems. Using AKM’s multi bit architecture for its modulator, it delivers a wide dynamic range while preserving linearity for improved THD+N performance. The AK4388ET integrates a combination of SCF and CTF filters increasing performance for systems with excessive clock jitter. The 24 Bit word length and 192kHz sampling rate make this part ideal for a wide range of applications including DVD-Audio. The AK4388ET is offered in a space saving 16pin TSSOP package.

Parametrics

AK4388ET absolute maximum ratings: (1)Power Supply, VDD: -0.3 to 6.0 V; (2)Input Current (any pins except for supplies), IIN: ±10 mA; (3)Input Voltage, VIND: -0.3 to VDD+0.3 V; (4)Ambient Operating Temperature AK4388ET, Ta: -20 to 85℃; (5)Storage Temperature, Tstg: -65 to 150℃.

Features

AK4388ET features: (1)Sampling Rate Ranging from 8kHz to 192kHz; (2)128 times Oversampling (Normal Speed Mode); (3)64 times Oversampling (Double Speed Mode); (4)32 times Oversampling (Quad Speed Mode); (5)24-Bit 8 times FIR Digital Filter; (6)SCF with High Tolerance to Clock Jitter; (7)Single Ended Output Buffer; (8)Digital de-emphasis; (9)Soft mute; (10)I/F format: 24-Bit MSB justified, 24/16-Bit LSB justified or I2S; (11)Master clock: 256fs, 384fs, 512fs, 768fs or 1152fs (Normal Speed Mode); 256fs or 384fs (Double Speed Mode); 128fs, 192fs (Quad Speed Mode); (12)THD+N: -90dB; (13)Dynamic Range: 106dB; (14)Power supply: 4.5 to 5.5V; (15)Very Small Package: 16pin TSSOP (6.4mm x 5.0mm); (16)AK4384 Parallel Mode Compatible.

Diagrams

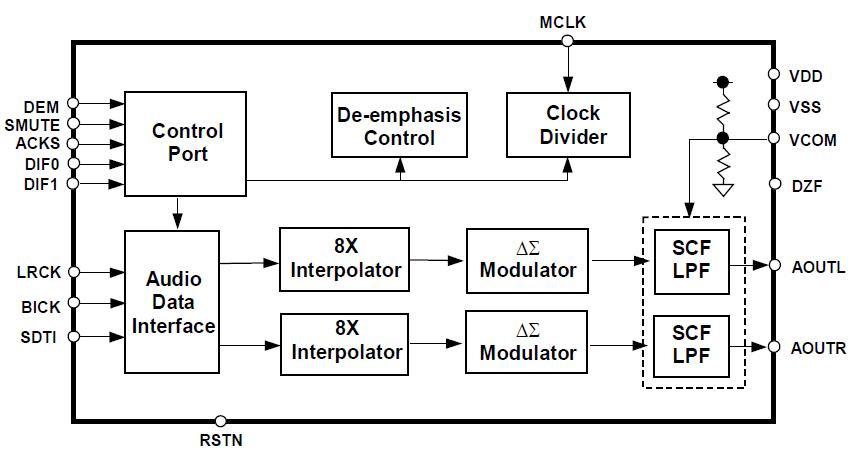

AK4388ET block diagram

AK4388AETP-E2
AK4388AETP-E2

IC DAC 24BIT PARALLEL 16TSSOP
