HFBR1528Z

Product Summary

The HFBR1528Z is a versatile link the versatile fiber optic connection. The Versatile Link series is a complete family of fiber optic link components for applications requiring a low cost solution. The HFBR1528Z series includes transmitters, receivers, connectors and cable specified for easy design. This series of components is ideal for solving problems with voltage isolation/insulation, EMI/RFI immunity or data security. The optical link design is simplified by the logic compatible receivers and complete specifications for each component. The key optical and electrical parameters of links configured with the HFBR1528Z family are fully guaranteed from 0℃ to 70℃. The applications of the HFBR1528Z include reduction of lightning/voltage transient susceptibility, motor controller triggering, Data communications and local area networks, electromagnetic compatibility (EMC) for regulated systems: FCC, VDE, CSA, etc., tempest-secure Data processing equipment.

Parametrics

HFBR1528Z absolute maximum ratings: (1)Storage Temperature, TS: -40 to +85 ℃; (2)Operating Temperature, TA: –40 to +85℃; (3)Lead Soldering Cycle, Temp.: 260 ℃; Time: 10 sec; (4)Forward Input Current, IFPK: 1000 mA; IFdc: 80mA; (5)Reverse Input Voltage, VBR: 5 V.

Features

HFBR1528Z features: (1)Low Cost Fiber Optic Components; (2)Enhanced Digital Links dc-5 MBd; (3)Extended Distance Links up to 120 m at 40 kBd; (4)Low Current Link: 6 mA Peak Supply Current; (5)Horizontal and Vertical Mounting; (6)Interlocking Feature; (7)High Noise Immunity; (8)Easy Connectoring Simplex, Duplex, and Latching Connectors; (9)Flame Retardant; (10)Transmitters Incorporate a 660 nm Red LED for Easy Visibility; (11)Compatible with Standard TTL Circuitry; (12)Isolation in Test and Measurement Instruments; (13)Error Free Signalling for Industrial and Manufacturing Equipment; (14)Automotive Communications and Control Networks; (15)Noise Immune Communication in Audio and Video Equipment.

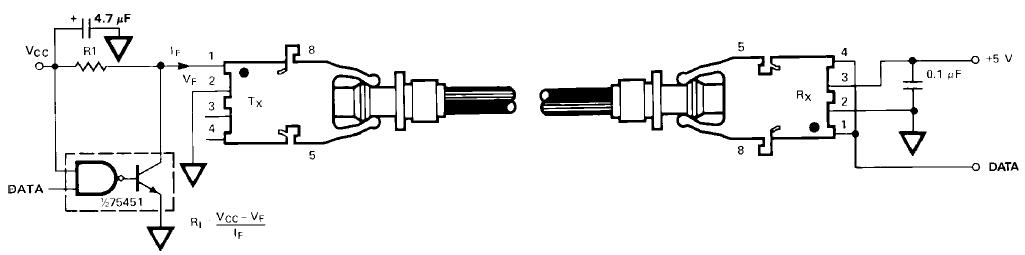

Diagrams
