Product Summary

The M3062LFGPFP is a 16-bit CMOS microcomputer. The M3062LFGPFP is built using the high performance silicon gate CMOS process using a M16C/60 Series CPU core and are packaged in a 80-pin, 100-pin and 128-pin plastic molded QFP. The M3062LFGPFP operates using sophisticated instructions featuring a high level of instruction efficiency. With 1M bytes of address space, it is capable of executing instructions at high speed. In addition, this microcomputer contains a multiplier and DMAC which combined with fast instruction processing capability, makes it suitable for control of various OA, communication, and industrial equipment which requires highspeed arithmetic/logic operations. The applications of the M3062LFGPFP include Audio, cameras, television, home appliance, office/communications/portable/industrial equipment, automobile, etc.

Parametrics

M3062LFGPFP absolute maximum ratings: (1)Supply Voltage, VCC1=AVCC, VCC1, VCC2: -0.3 to 6.5 V; (2)Supply Voltage, VCC2, VCC2: -0.3 to VCC1+0.1 V; (3)Analog Supply Voltage, VCC1=AVCC, AVCC: -0.3 to 6.5 V; (4)Input Voltage, VI: -0.3 to VCC+0.3V; (5)Output Voltage, VO: -0.3 to VCC+0.3V; (6)Power Dissipation, -40℃<Topr≤85℃, Pd: 300 mW; (7)Operating Ambient Temperature, When the Microcomputer is Operating Topr: -20 to 85 / -40 to 85℃; Flash Program Erase, Topr: 0 to 60℃; (8)Storage Temperature, Tstg: -65 to 150℃.

Features

M3062LFGPFP features: (1)Resolution: 8 Bits; (2)Absolute Accuracy: 1.0 %; (3)Setup Time, tSU: 3 μs; (4)Output Resistance, RO: 4 to 20 kΩ; (5)Reference Power Supply Input Current, IVREF: 1.5 mA.

Diagrams

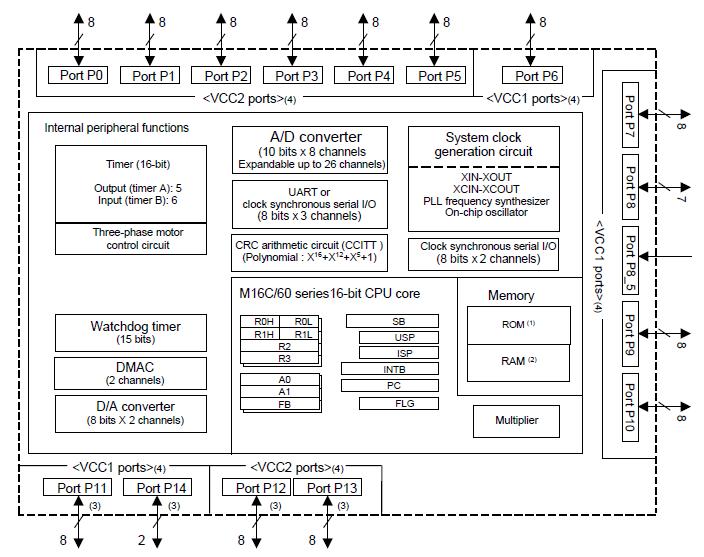

M3062LFGPFP block dragram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

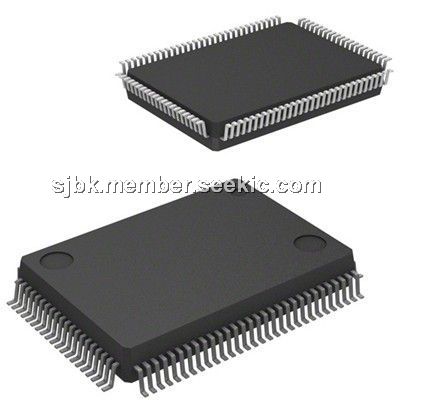

M3062LFGPFP#U3C
M3062LFGPFP#U3C


IC M16C/62P MCU FLASH 100-QFP

Data Sheet

0-1: $12.66
1-10: $11.51
10-100: $9.78
100-250: $8.92
250-500: $8.34
500-1000: $7.65
1000-2500: $7.34
2500-5000: $7.14
5000-10000: $6.90
M3062LFGPFP#U5C
M3062LFGPFP#U5C


IC M16C/62P MCU FLASH 100-QFP

Data Sheet

0-1: $11.47
1-10: $10.43
10-100: $8.86
100-250: $8.08
250-500: $7.56
500-1000: $6.93
1000-2500: $6.65
2500-5000: $6.47
5000-10000: $6.26
M3062LFGPFP#U9C
M3062LFGPFP#U9C


IC M16C/62P MCU FLASH 100-QFP

Data Sheet

0-1: $12.62
1-10: $11.47
10-100: $9.75
M3062LFGPFP#U7C
M3062LFGPFP#U7C


IC M16C/62P MCU FLASH 100-QFP

Data Sheet

0-1: $12.66
