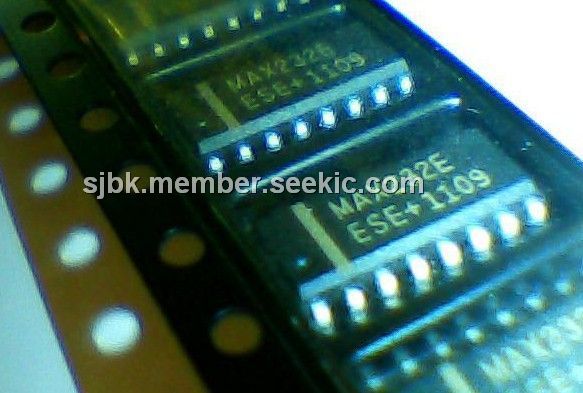

MAX232EESE

MAX232EESE, RS-232 Transceiver, 16SOIC, 0.4V, 20mA, Maxim Integrated Products

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~100.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~100.00

PartNumber:: MAX232EESE

Brand:: Maxim Integrated Products - Maxim | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. tiffany's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-09

From Other Seller

Part Number:MAX232EESE
US $0.01 - 100.00
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MAX232EESE is a 15kV ESD-protected, 5V RS-232 transceiver. The MAX232EESE is designed for RS-232 and V28 communications in harsh environments. Each transmitter output and receiver input is protected against ±15kV electrostatic discharge (ESD) shocks, without latchup. The various combinations of features are outlined in the Selector Guide. The drivers and receivers for all ten devices meet all EIA/TIA-232E and CCITT V.28 specifications at data rates up to 120kbps, when loaded in accordance with the EIA/TIA-232E specification. The applications of the MAX232EESE include notebook, subnotebook, and palmtop computers, battery-powered equipment, hand-held equipment.

Parametrics

MAX232EESE absolute maximum ratings: (1)VCC: -0.3V to +6V; (2)V+: (VCC - 0.3V) to +14V; (3)V-: -14V to +0.3V; (4)Input Voltages, T_IN: -0.3V to (V+ + 0.3V); R_IN: ±30V; (5)Output Voltages, T_OUT: (V- - 0.3V) to (V+ + 0.3V); R_OUT: -0.3V to (VCC + 0.3V); (6)Short-Circuit Duration, T_OUT: Continuous; (7)Continuous Power Dissipation (TA = +70℃): 16-Pin Plastic DIP (derate 10.53mW/℃): 842mW; 16-Pin Narrow SO (derate 8.70mW/℃): 696mW; 16-Pin Wide SO (derate 9.52mW/℃): 762mW; 16-Pin TSSOP (derate 9.4mW/℃): 755mW; 20-Pin Plastic DIP (derate 11.11mW/℃): 889mW; 20-Pin SO (derate 10.00mW/℃): 800mW; 24-Pin Narrow Plastic DIP (derate 13.33mW/℃): 1.07W; 24-Pin Wide Plastic DIP (derate 14.29mW/°C above +70℃): 1.14W; 24-Pin SO (derate 11.76mW/℃): 941mW; 24-Pin SSOP (derate 8.00mW/℃): 640mW; 28-Pin SO (derate 12.50mW/℃): 1W; 28-Pin SSOP (derate 9.52mW/℃): 762mW; (8)Operating Temperature Ranges: -40℃ to +85℃; (9)Storage Temperature Range: -65℃ to +165℃; (10)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX232EESE features: (1)For Low-Voltage Applications, MAX3222E/MAX3232E/MAX3237E/MAX3241E/MAX3246E: ±15kV ESD-Protected Down to 10nA, +3.0V to +5.5V, Up to 1Mbps, True RS-232 Transceivers (MAX3246E Available in a UCSP. Package); (2)For Low-Power Applications, MAX3221/MAX3223/MAX3243: 1μA Supply Current, True +3V to +5.5V RS-232 Transceivers with Auto-Shutdown; (3)For Space-Constrained Applications, MAX3233E/MAX3235E: ±15kV ESD-Protected, 1μA, 250kbps, +3.0V/+5.5V, Dual RS-232 Transceivers with Internal Capacitors; (4)For Low-Voltage or Data Cable Applications, MAX3380E/MAX3381E: +2.35V to +5.5V, 1μA, 2Tx/2Rx RS-232 Transceivers with ±15kV ESDProtected I/O and Logic Pins.
