MAX629ESA

28V, Low-Power, High-Voltage, Boost or Inverting, DC-DC Converter, 8-SOIC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~10.00

PartNumber:: MAX629ESA

Brand:: Maxim Integrated Products - Maxim | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. tiffany's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-02

From Other Seller

Part Number:MAX629ESA
US $1.00 - 10.00
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

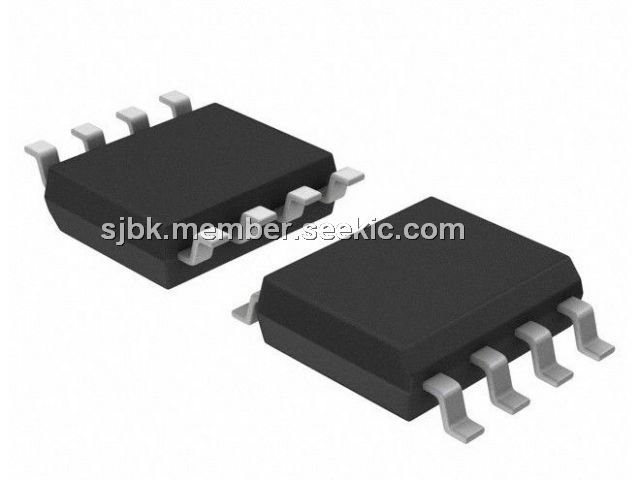

The MAX629ESA is the low-power DC-DC converter which features an internal N-channel MOSFET switch and programmable current limiting. It is designed to supply positive or negative bias voltages up to ±28V from input voltages in the 0.8V to VOUT range, and can be configured for boost, flyback, and SEPIC topologies. The MAX629ESA is available in an 8-pin SO package.

Parametrics

MAX629ESA absolute maximum ratings: (1)Supply Voltage (VCC to GND): -0.3V to +6V; (2)SHDN to GND: -0.3V to +6V; (3)ISET, REF, FB, POL to GND: -0.3V to (VCC + 0.3V); (4)LX to GND: -0.3V to +30V; (5)Continuous Power Dissipation (TA = +70℃), SO (derate 5.88mW/℃ above +70℃): 471mW; (6)Operating Temperature Range: -40 to +85℃; (7)Junction Temperature: +150℃; (8)Storage Temperature Range: -65 to +165℃; (9)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX629ESA features: (1)Internal, 500mA, 28V N-Channel Switch(No External FET Required); (2)Generates Positive or Negative Output Voltages; (3)80μA Supply Current; (4)1μA Max Shutdown Current; (5)Up to 300kHz Switching Frequency; (6)Adjustable Current Limit Allows Use of Small, Inexpensive Inductors; (7)8-Pin SO Package.
