IDT74LVC4245A

IDT74LVC4245A, CMOS octal bus transceiver and shifter, TSSOP, 6.5V, 50mA, Integrated Device Technology

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~100.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~100.00

PartNumber:: IDT74LVC4245A

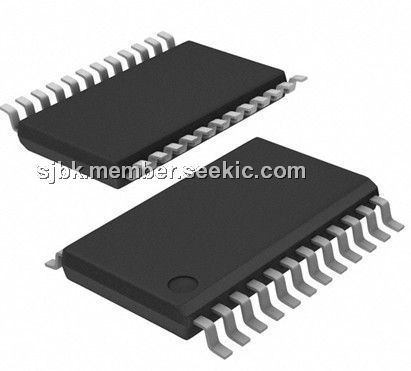

Brand:: Integrated Device Technology - IDT | Pack: TSSOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. tiffany's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-17

From Other Seller

Part Number:IDT74LVC4245A
US $0.01 - 100.00
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
TOP259EN

US $1.10 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

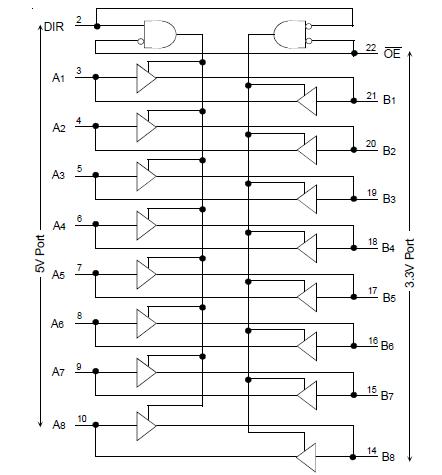

The IDT74LVC4245A is a CMOS octal bus transceiver and 3.3V to 5V shifter with 3-state out-puts and 5 Volt tolerant I/O. The IDT74LVC4245A is manufactured using advanced dual metal CMOS technology. This device contains two separate supply rails; B port has VCCB, which is set at 3.3V, and A port has VCCA, which is set at 5V. This allows for translation from a 3.3V to a 5V environment, and vice-versa. This device is ideal for asynchronous communication between two buses (A and B). The direction control pin (DIR) controls the direction of data flow. The output enable pin (OE) overrides the direction control and disables both ports. The applications of the IDT74LVC4245A include 5V and 3.3V mixed voltage systems, Data communication and telecommunication systems.

Parametrics

IDT74LVC4245A absolute maximum ratings: (1)Terminal Voltage with Respect to GND, VTERM: -0.5 to +6.5 V; (2)Storage Temperature, TSTG: -65 to +150℃; (3)DC Output Current, IOUT: -50 to +50 mA; (4)Continuous Clamp Current, VI < 0 or VO < 0, IIK, IOK: -50 mA; (5)Continuous Current through each, ICC: ±100 mA.

Features

IDT74LVC4245A features: (1)0.5 MICRON CMOS Technology; (2)VCCA = 5V ±0.5V; (3)VCCB = 2.7V to 3.6V; (4)CMOS power levels (0.4?W typ. static); (5)Rail-to-rail output swing for increased noise margin; (6)All inputs, outputs, and I/O are 5V tolerant; (7)Supports hot insertion; (8)Available in SOIC, SSOP, QSOP, and TSSOP packages.
