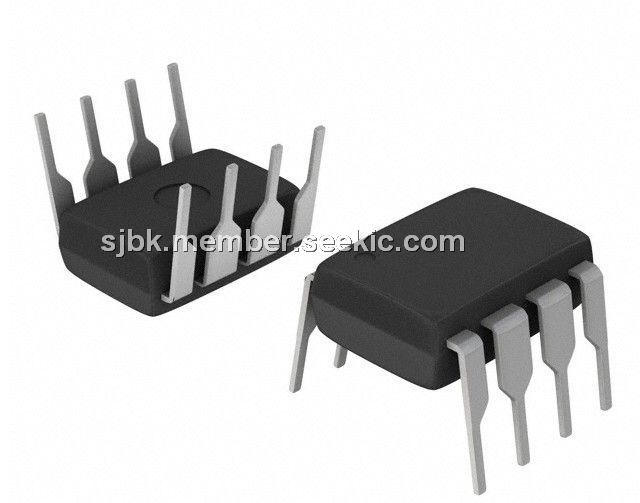

IR2153D

gate driver IC, 8-DIP, -5 to 5mA, -0.3 to 625V, True micropower start up, Excellent latch immunity

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~10.00

PartNumber:: IR2153D

Brand:: International Rectifier - IR | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. tiffany's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-02

From Other Seller

Part Number:IR2153D
US $1.00 - 10.00
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
IRF3205

US $0.80 - 2.50 / Piece
(0) Remove
Quantity:

piece

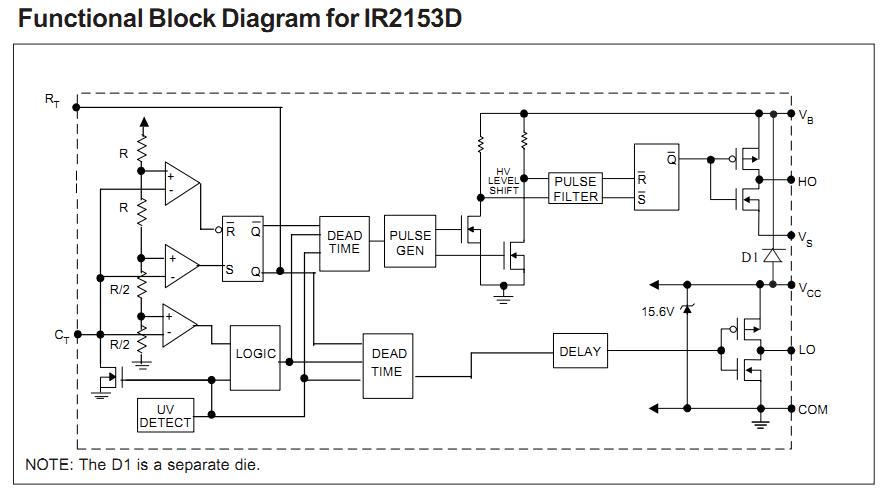

Product Summary

The IR2153D is a gate driver IC incorporated a high voltage half-bridge gate driver with a front end oscillator similar to the industry standard CMOS 555 timer. The IR2153D provides more functionality and is easier to use than previous ICs. A shutdown feature has been designed into the IR2153D CT pin, so that both gate driver outputs can be disabled using a low voltage control signal. In addition, the IR2153D gate driver output pulse widths are the same once the rising undervoltage lockout threshold on VCC has been reached, resulting in a more stable profile of frequency vs time at startup.

Parametrics

IR2153D absolute maximum ratings: (1)VB, High side floating supply voltage: -0.3 to 625V; (2)VS, High side floating supply offset voltage: VB - 25 to VB + 0.3V; (3)VHO, High side floating output voltage: VS - 0.3 to VB + 0.3V; (4)VLO, Low side output voltage: -0.3 to VCC + 0.3V; (5)VRT, RT pin voltage: -0.3 to VCC + 0.3V; (6)VCT, CT pin voltage: -0.3 to VCC + 0.3V; (7)ICC, Supply current: 25mA; (8)IRT, RT pin current: -5 to 5mA; (9)dVs/dt, Allowable offset voltage slew rate: -50 to 50 V/ns; (10)PD, Maximum power dissipation: 1.0W; (11)TJ, Junction temperature: -55 to 150℃; (12)TS, Storage temperature: -55 to 150 ℃; (13)TL, Lead temperature (soldering, 10 seconds): 300℃.
